    Instruction

    Membrane Bio-Rector (MBR ) is a new wastewater treatment technology which combines membrane separation technology with the activated sludge process. It is a modern and efficient water treatment system, which can meet the growing demand of industrial and municipal sewage treatment.MOTIMO has the completely independent intellectual property rights of this technique.

    Features

    1.High concentrations of activated sludge improves removal of organic material ;
    2.Effective and high removal rate of ammonia and nitrogen;
    3.Highly efficient removal of various microbes or pathogens;
    4.Suspended solids and turbidity are close to zero, therefore can be reused directly;
    5.Low rate of sludge production, reducing the cost of sludge processing;
    6.50% footprint saving compared with the traditional wastewater treatment plant;

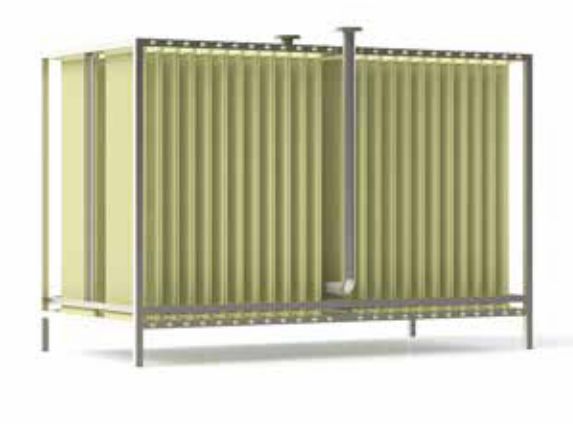

    7.Flexible membrane cassette allows convenient assembly and maintenance of the modules;
    8.Low energy consumption, simple cleaning, low-cost operation;

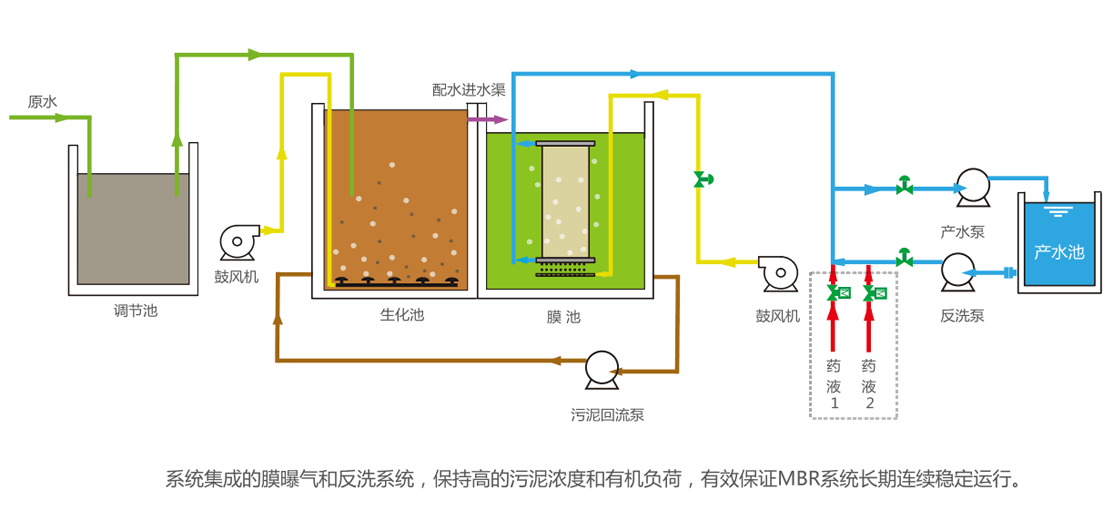

    System Application

    Type of use

    Raw water

    Application

    Municipal sewage treat and reuse

    Municipal sewage

    Raising standard remake, landscape, garden green, irrigation, miscellaneous water

    Building water reuse

    Building domestic sewage

    Toilet flushing and garden greening water

    Industrial wastewater treatment and reuse

    Industrial wastewater

    Raising standard remake,
    miscellaneous water
    Miscellaneous water

    refuse landfill sewage treatment

    garbage percolate

    Reaching the discharge standard

    Product Parament

    Model of membrane component

    BF-12

    BT-20D

    BT-28D

    component
    parament

    Membrane technology

    NIPS

    C-TIPS

    Effective membrane area(m2)

    12

    20

    28

    Maximum diameter hole(um)

    0.1

    Component Size

    Total length×total width (mm)

    1000×534

    1500×534

    2000×534

    Interface size

    Bell socket (DN)

    32

    Component weight

    Moist component (kg)

    10

    13

    15

    Operating
    conditions

    Filter type

    Suction full flow filtration

    Maximum transmembrane differential pressure(KPa)

    50

    80

    Applicable tempeture range(℃)

    1-40

    Common PH range

    6-8

    Tolerance PH range

    1-10

    Applicable sludge concentration MLSS

    5000-8000

    20℃design flux (L/m2*h)

    10-20

    Component aeration average (Nm3/h)

    3-5

    5

    5
